Photos of the DH Boat - 2

The DH Boat is a plywood construction. It was a design project by a friend of mine, to see how big a boat he could build out of 2 sheets of 4 ft. x 8 ft. plywood.

Details.

The bow of the boat.

The side of the boat showing the rudder and leeboard pivoted up. In this position one could launch off a beach or shallow area, row or pole out to deeper water and lower (more likely push down) the rudder and leeboard to sail.

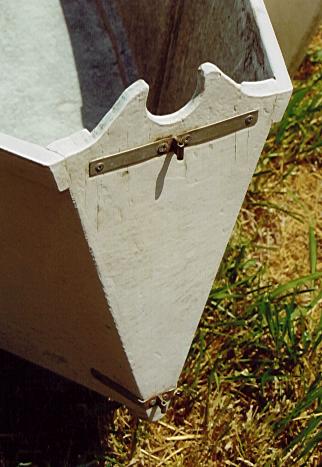

Detail of the Transom - Outside.

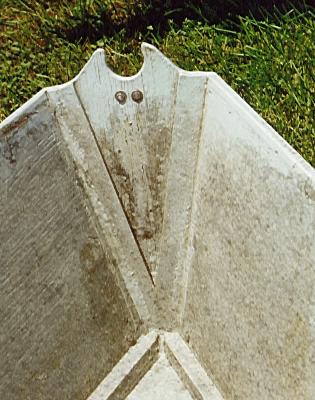

Inside of the stern and view of Transom.
