~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ Other Events ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~

~ ~ ~ ~ ~ ~ Family Boat Building ~ ~ ~ ~ ~ ~ ~

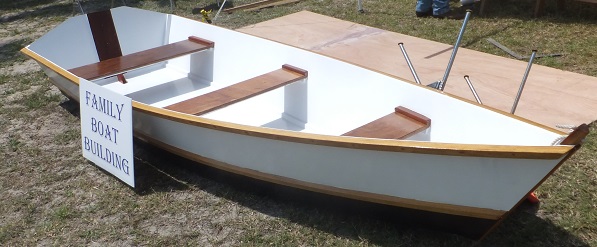

sample - what a finished boat would look like after painting

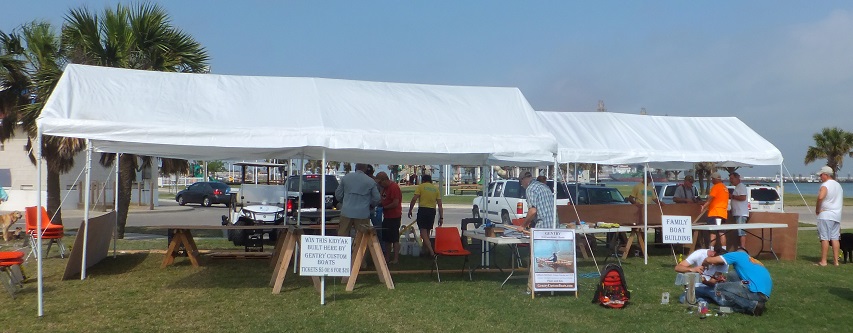

4 6 2018 - 10.45 am - - setup on Friday morning

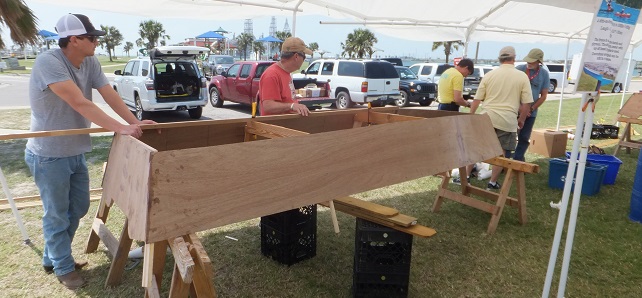

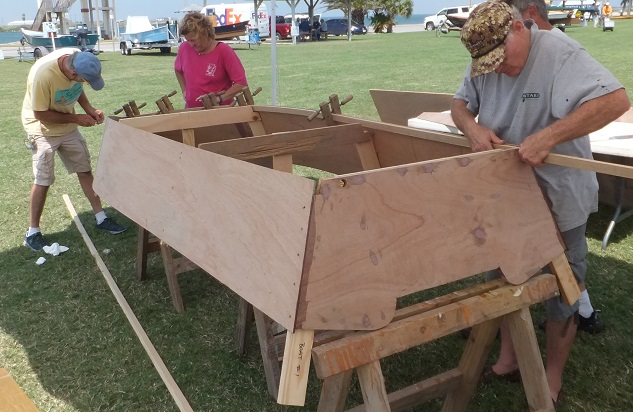

4 6 2018 - 2.59pm - - getting the sides, transom and stem connected can happen quickly

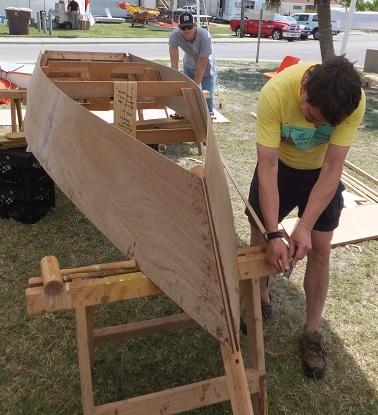

4 6 2018 - 2.59pm - - chines set in after sides stem and transom attached

4 6 2018 - 2.30pm - - trimming the fore end of chines to be set in on the stem

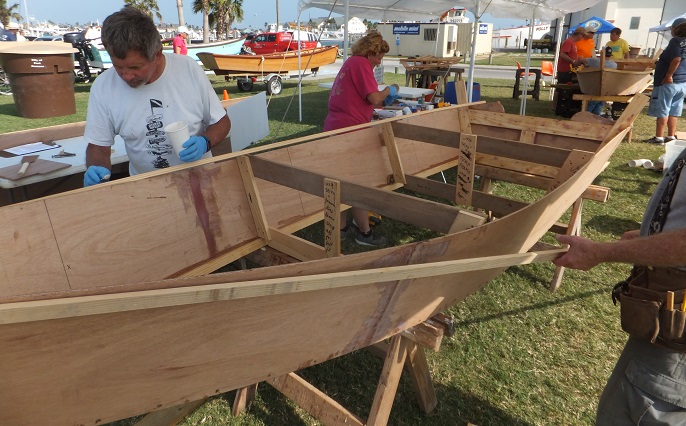

4 6 2018 - 5.06pm hull right side up - - gunwales (also know as sheer strakes) being added on the outer surface of the sides

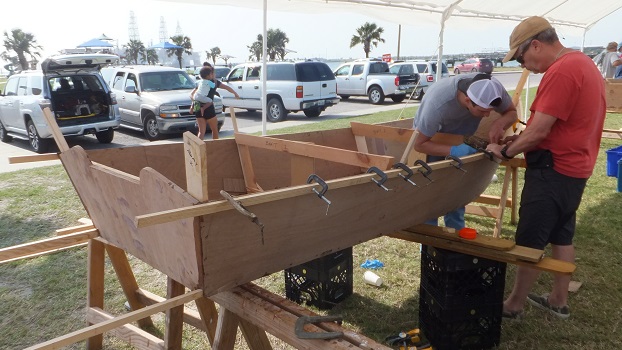

4 6 2018 - 5.06pm - - bending the gunwale to the side

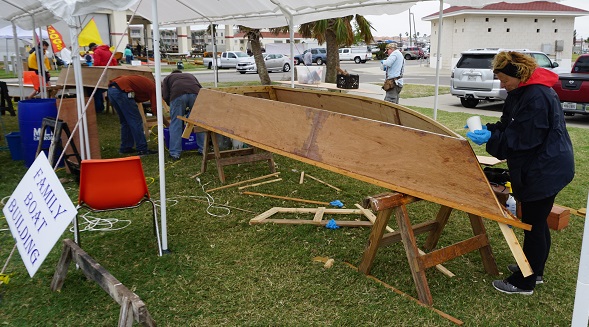

6-7-2018 - 10,40 am - ready to add the bottom

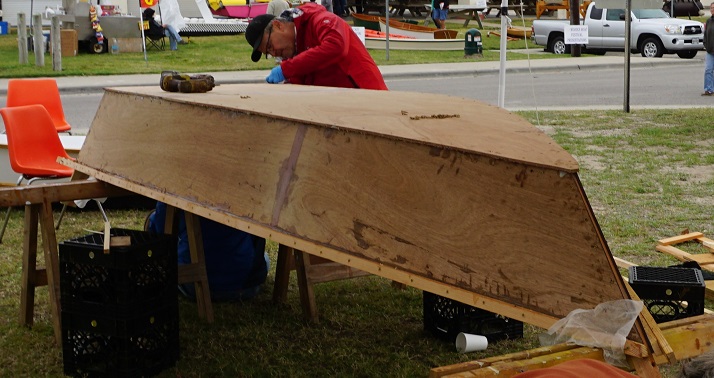

6-7-2018 10,41 am - bottom epoxied and screwed on.
in a previous maneuver the rectangular bottom part was set on top
of the upside down hull and was traced around the hull, then cut out with a jigsaw.

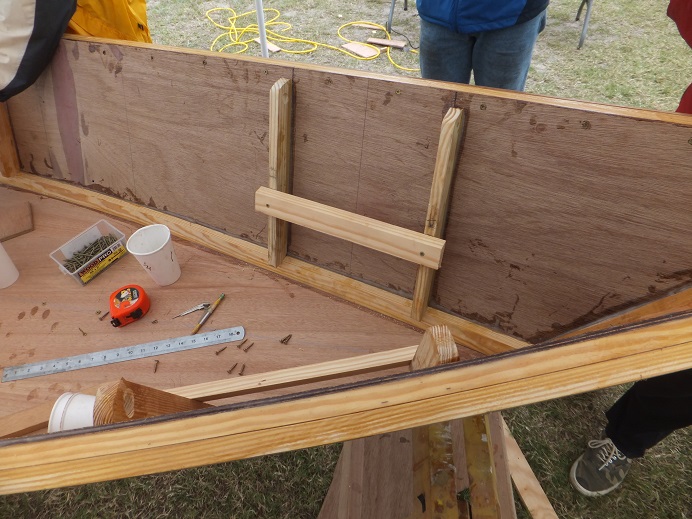

4 8 2018 - 10.38 am - - installing the thwart (seat) risers

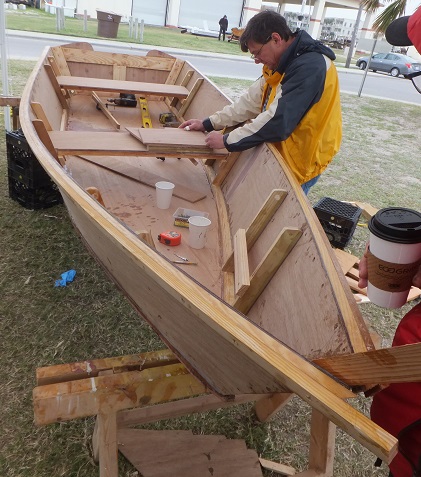

note that the gunwale was doubled - to make that top edge stronger

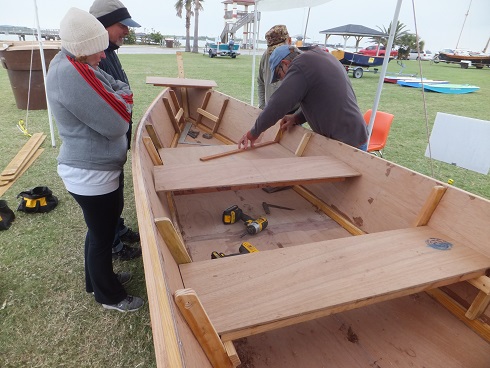

4 8 2018 - 10.38 am - - fitting the thwarts (seats)

4 8 2018 am - - better view of gunwale double, at bow (front of boat) before end is trimmed off

It was too cold for the epoxy to properly set up enough to launch the boats.
And as the hulls were esentially completed, and the builders wanted to do more finishing,
the hulls were removed from Roberts Park to Farley Boatworks
to be finished when the family builders would return the following weekend.

~ ~ ~ ~ ~ ~ Building a skin-on-frame mini-kayak - Dave Gentry ~ ~ ~ ~ ~ ~ ~
gentrycustomboats.com

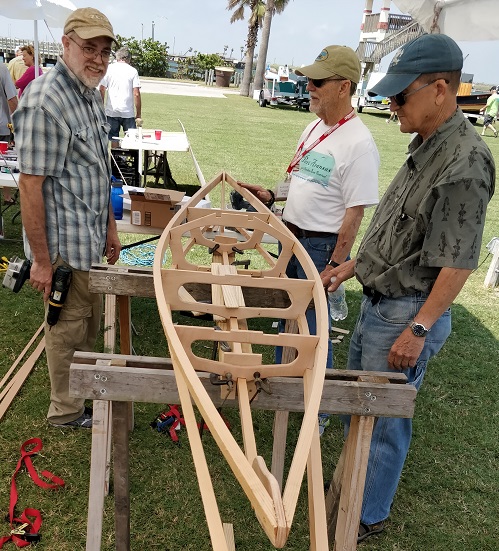

building the frame. note that the bit of 2x4 under the frame, that is the stronback for this build.
It is removed after the frame is all together.
Also note the shirtsleeve weather - on Friday before the cold front blew in.

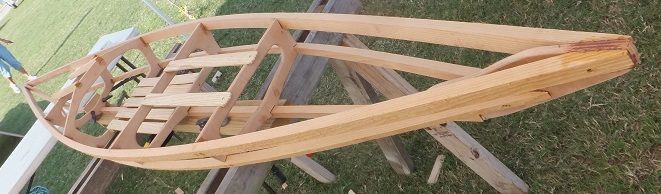

detail on framing at bow

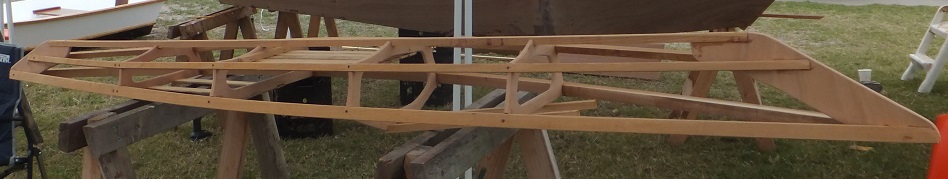

frame completed - turned upside down in preparation for applying polyester skin to bottom
the front is to the right in this photo
No epoxy is used, frame parts just screwed together.

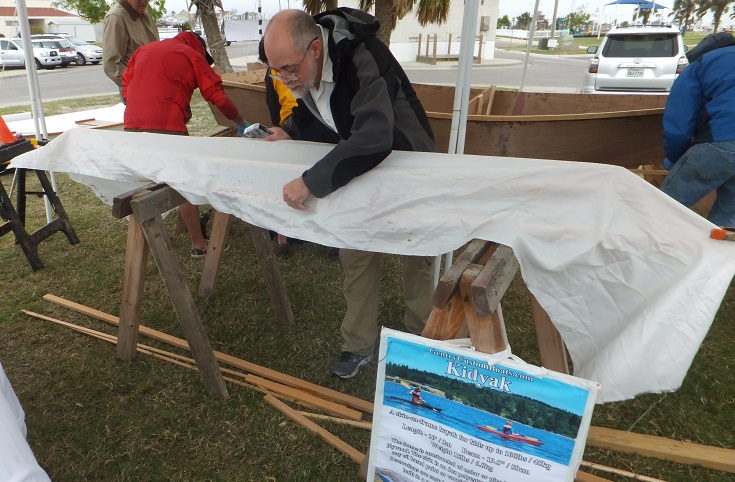

laying the polyester cloth skin on the bottom

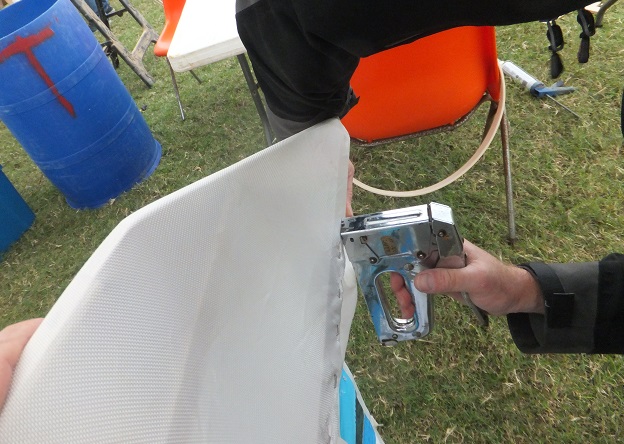

stretching the skin (polyester cloth) on the bottom and stapling it to the gunwale

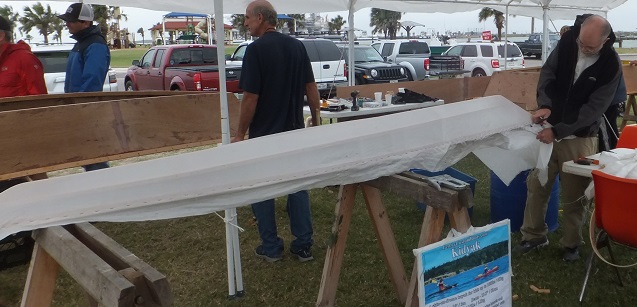

trimming the excess cloth off the bottom with a scissors after all is stapled on the gunwale.

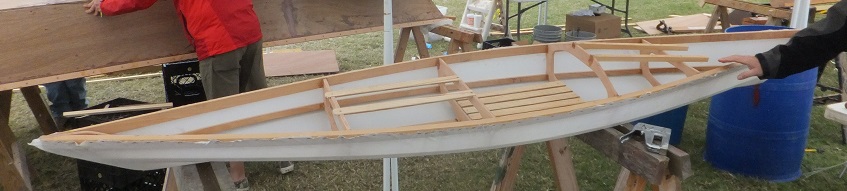

bottom skin applied - the front is to the left in this photo

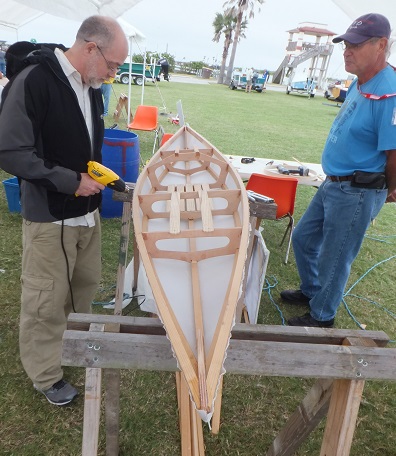

heat treating (very slightly shrinking - the polyester cloth - very gently - to tighten it up
one could also use an iron as is used to press clothes, but be very careful and use a light hand

after applying the cloth to the top and stapling it to the gunwales

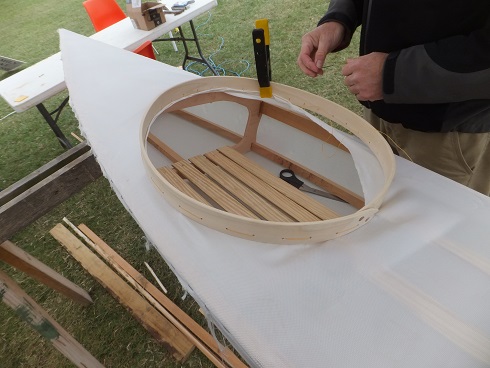

sewing the cockpit entrance to the hole in the top skin
note that there are pre-drilled holes in the cockpit entrance
Yes, it is possible to steam and bend many types of wood into such a circle and secure with copper rivits.

Thin strips of wood attached (screwed) to the outside of the rails to finish the edge

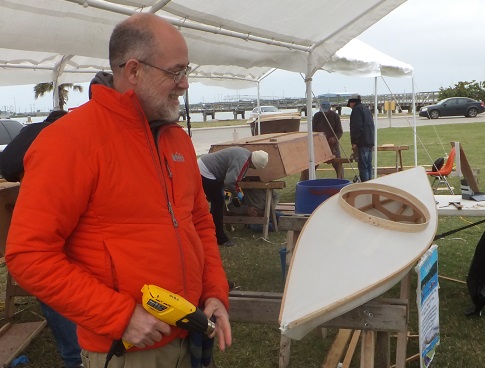

Then final heat treating to slightly tighten up the skin.

The recipients of the finished hull.
For final completion a couple of coats of plain oil based paint should be applied.

-

~ ~ ~ ~ ~ ~ Chesapeake Light Craft exhibit ~ ~ ~ ~ ~ ~ ~
clcboats.com

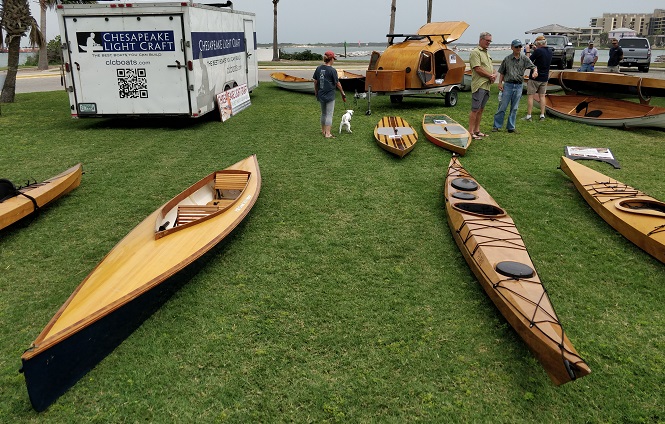

CLC Kayaks - teardrop trailer - paddleboards

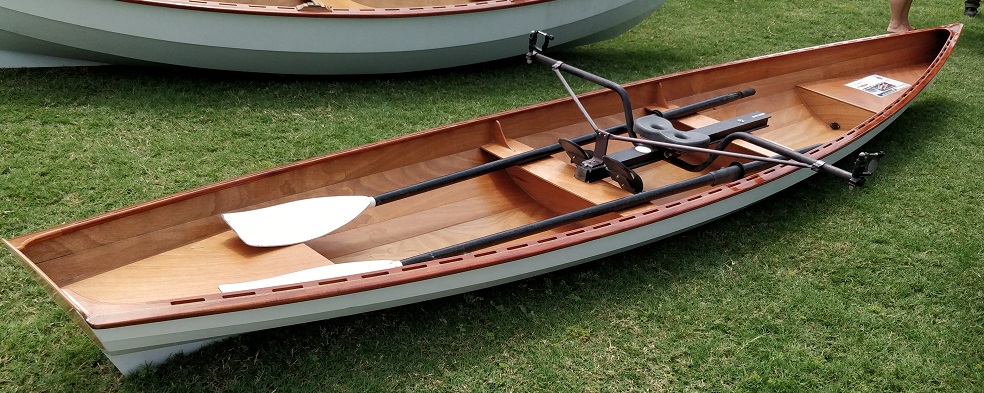

CLC Annapolis Wherry

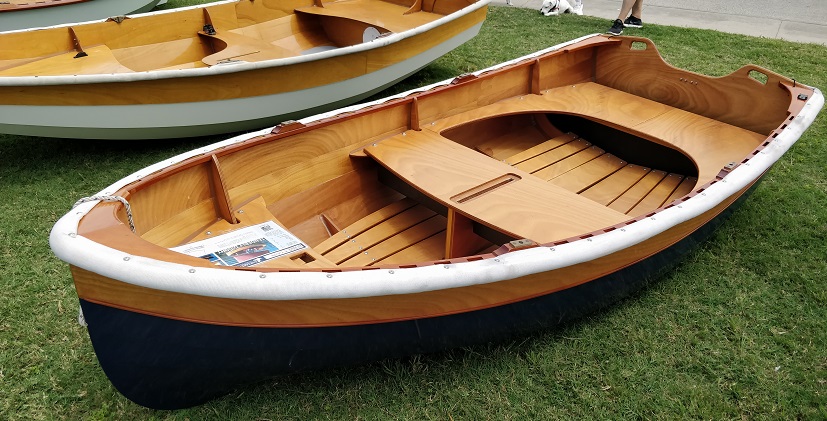

CLC Tenderly Dingy - Passage Maker dingy in background

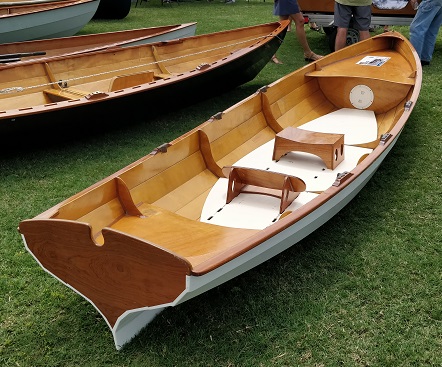

CLC Chester Yawl

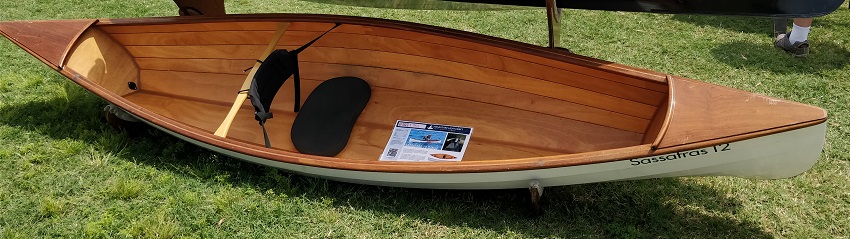

CLC Sassafras 12 canoe

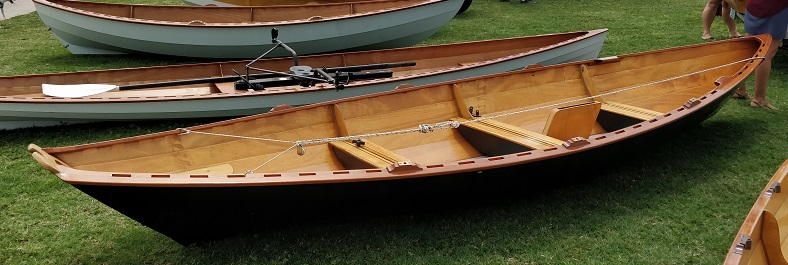

CLC Dory

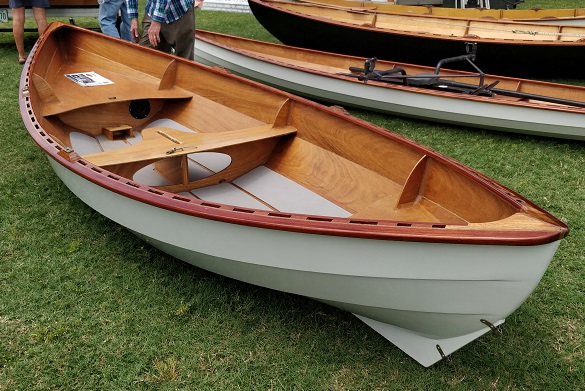

CLC Skerry double ender

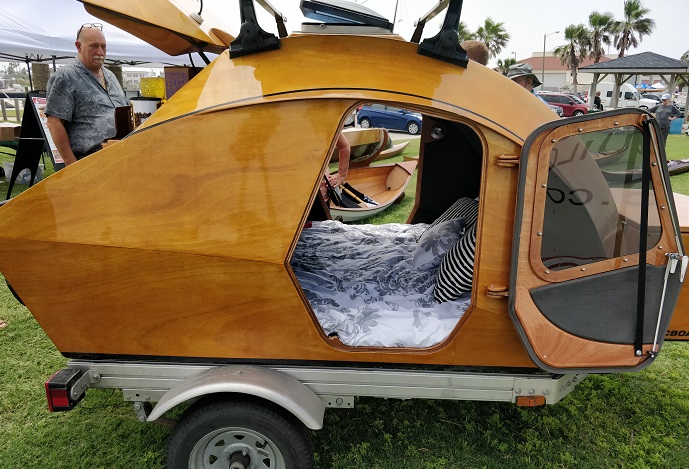

CLC Teardrop trailer

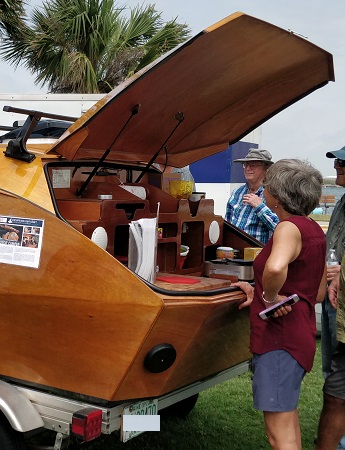

CLC Teardrop trailer - the galley aft

~ ~ ~ ~ ~ ~ ~ ~ ~ ~
