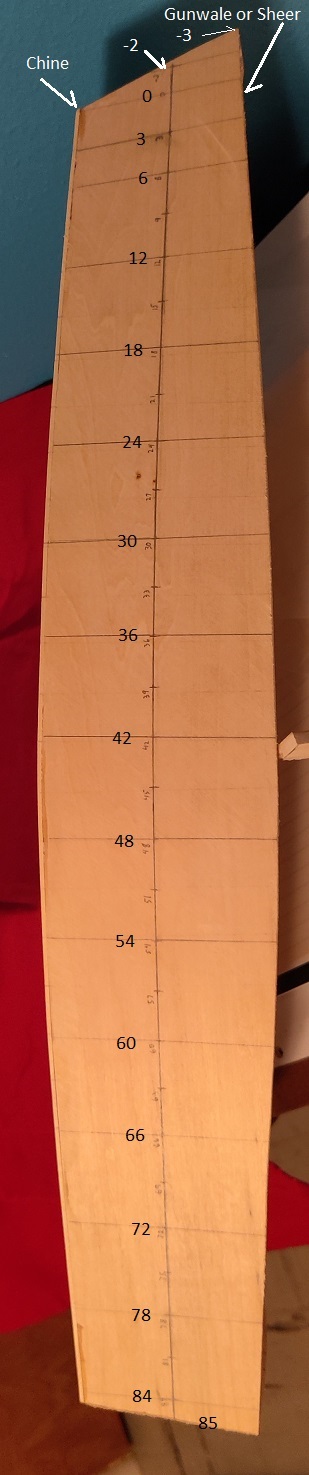

line drawing of the Optimist Pram as designed in 1948 by Clark Mills of Florida, USA

- -
    No matter that it looks curved in the picture - the line is a straight line.

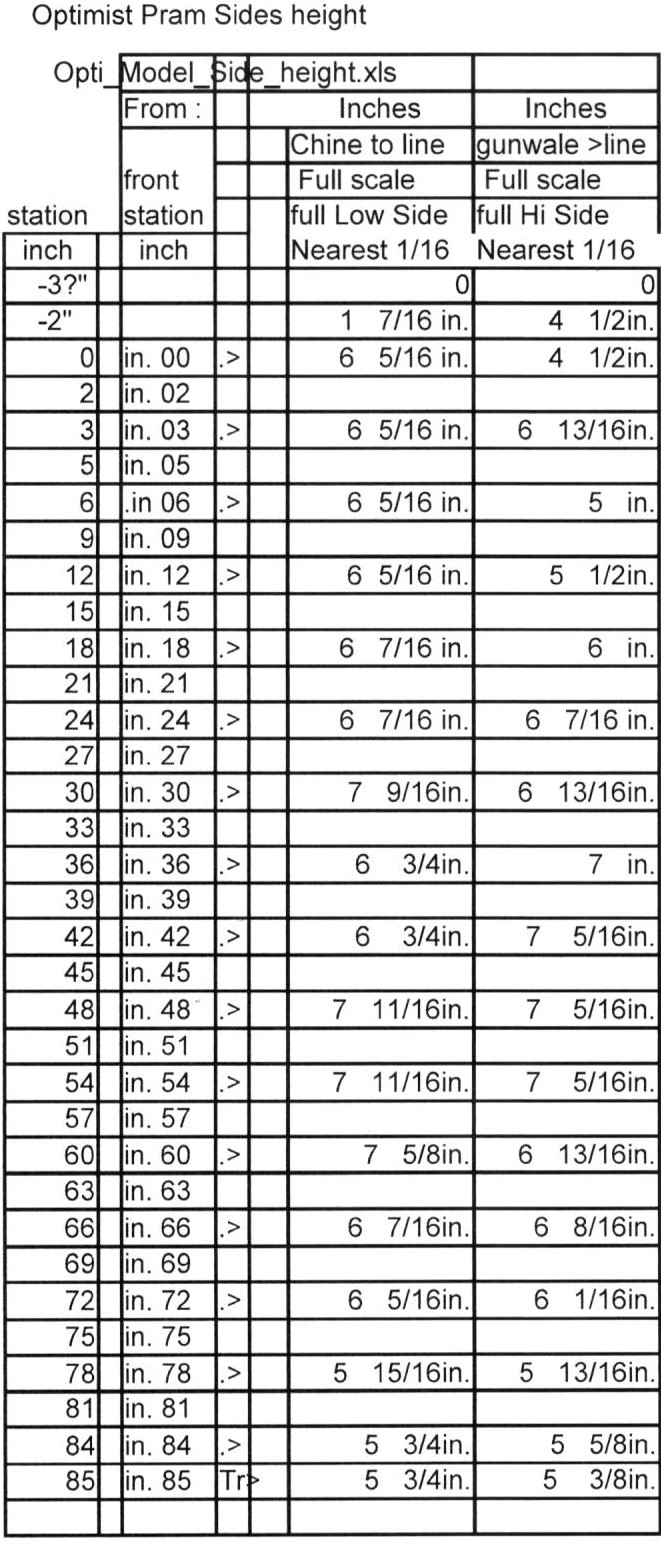

    The full size listing of measurements to draw out the sides for an Optimist Dinghy .
    The model is a 1/4 inch = 1 inch scale
    The measurements in the Table are Full Size measurements in inches and fractions of an inch.
OptModel_sides_height

- - - - - - - - - - - - - - - -

The Bottom measurements for a Full Sized boat.
